Information |
||
|---|---|---|
| PD No. | GWR高角度无影环形光源 | |
| PD Line | GWR Series | |
|
|||||
|---|---|---|---|---|---|
|

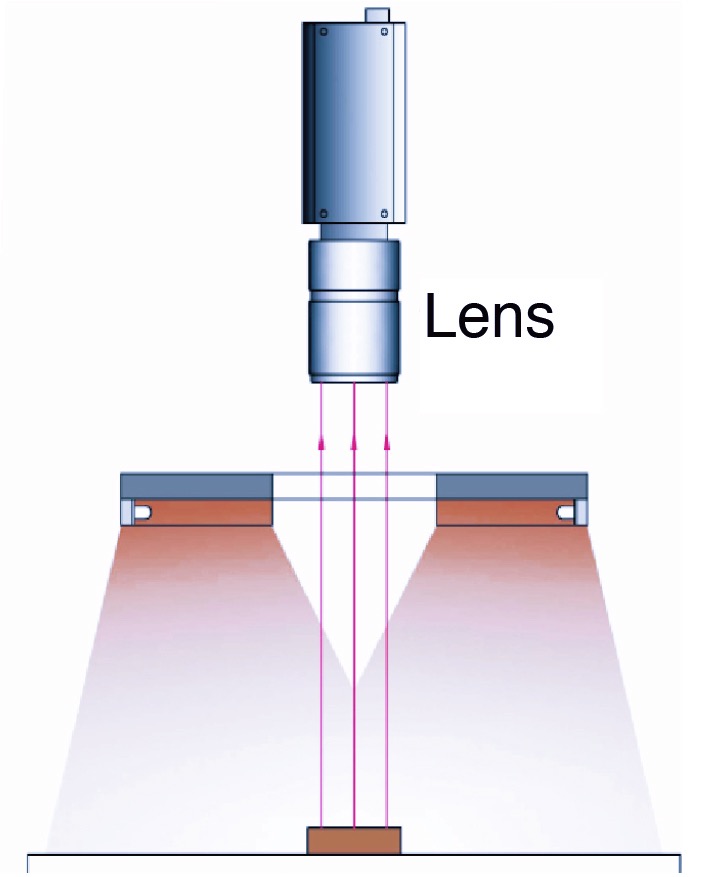

● The lights achieve a uniform region with high luminance by using unique illumination mechanism. ● Compact design, convenient to installation. |
|||||
|
|||||
|---|---|---|---|---|---|
|

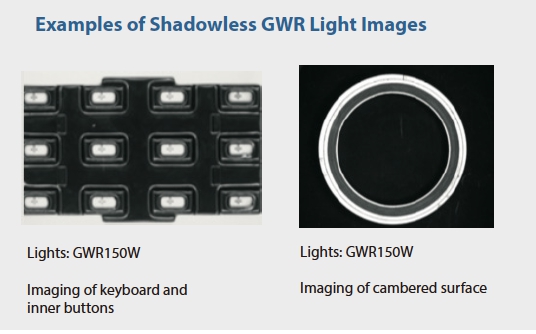

● Inspection of defects on unfairness specular surface ● food and medicine packages ● the welding points of electronic components |
|||||
Specifications |
||
|---|---|---|
| Supply Voltage | 24 V | |
| Power Cons. |
Red 620-630nm：13.2 W Blue 465-475nm：19.2 W White：19.2 W |
|
| Outer diam. | 166 mm | |
| Inner diam. | 116 mm | |
| High | 26 mm | |
| Connector | SMR-03V-B | |
| Polarity | 1: (+), 2: NC, 3: (-) | |
| Cable Length | 500 mm | |
| Optional Accessory |
Diffusion plate, Polarizing plate. DC extension cable:：1m / 2m / 3m |
|
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
|
|---|
