| PD No. | MLi Series_Multi-Angle Line Scan Illumination | |
| PD Line | LT3 Li Series | |
|
|||||
|---|---|---|---|---|---|
|

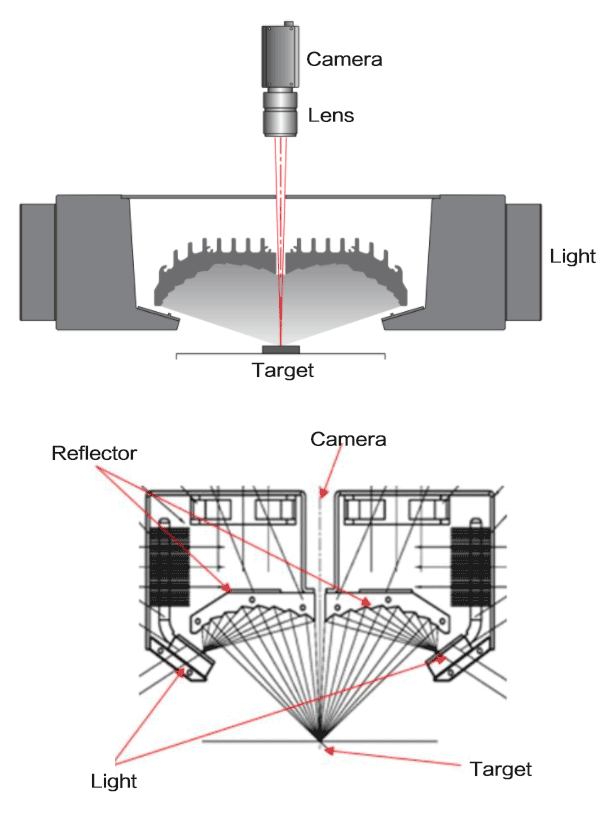

● Brightness up to 1 million LUX. ● The angle can be adjusted to suit different needs. ● Multiple groups of highly concentrated light beams from different angles are focused on the same point to achieve multi-angle light effects. |
|||||
|
|||||
|---|---|---|---|---|---|
|
● IGlass surface defect detection ● Phone screen scratch detection ● PCB substrate inspection |
|||||
Specifications |
||
|---|---|---|
| Light Area(Other sizes can be customized) |
Length：300-305 mm Width：6-10 mm |
|
| Supply Voltage | 48 V | |
| Power Cons. | White：241.92-576 W | |
| Length | 316-328 mm (Customizable) | |
| Width | 310-300 mm (Customizable) | |
| High | 80-150 mm (Customizable) | |
| Wavelength range | Red：620-630nm；Blue：465-475nm；Green：515-530nm；White：6000-10000K(ColorTemperature) | |
| Cable Length | Standard length 485±15mm, optional 1/2/3 meter long wire | |
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
