[ RETURN LIST ] HOME>PRODUCTS>ACCESSORIES

PRODUCTS

VT-TTB009

As a standard radiation source, standard blackbody is widely used to calibrate radiation thermometers, infrared thermometers and radiation temperature sensing detectors. Vision Datum VT-TTB009 portable blackbody is specially customized for human body temperature measurement system facing COVID. The product wins the market share with accuracy and stability.

Inquire now

Shop now

Product Description

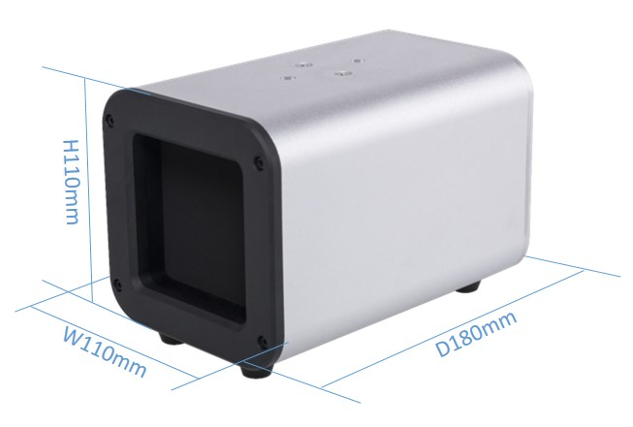

Technical Drawing

Information
	PD No.	VT-TTB009
	PD Line	VT-TTB Series

Information

PD No.

VT-TTB009

PD Line

VT-TTB Series

Specifications
	Effective Radiant Surface	72mm * 72mm
	Working Temperature Range	30℃?50℃
	Temperature Resolution	0.01℃
	Temperature Measuring Accuracy	±0.2℃ (QC test, measured when the ambient temperature is 23℃±5℃)
	Temperature Stability	±0.15℃/10min
