Information |
||
|---|---|---|
| PD No. | HR High Angle Ring Illumination | |
| PD Line | HR Series | |
|
|||||
|---|---|---|---|---|---|
|

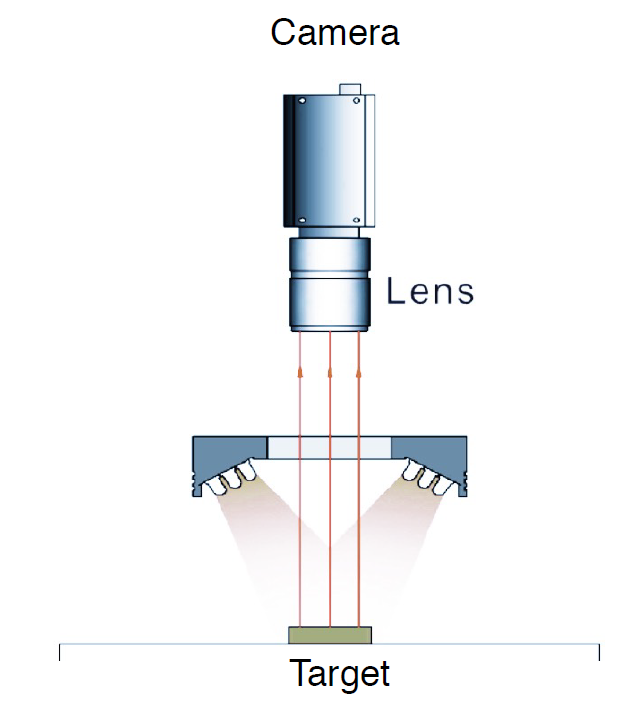

● Multi angles available for right light to get vivid image ● High density LED arrays for the intensity illumination ● Diffuser is available to increase the uniformity of illumination ● Breakthrough wave-soldering technology to improve production quality and efficiency. |
|||||
|
|||||
|---|---|---|---|---|---|
|

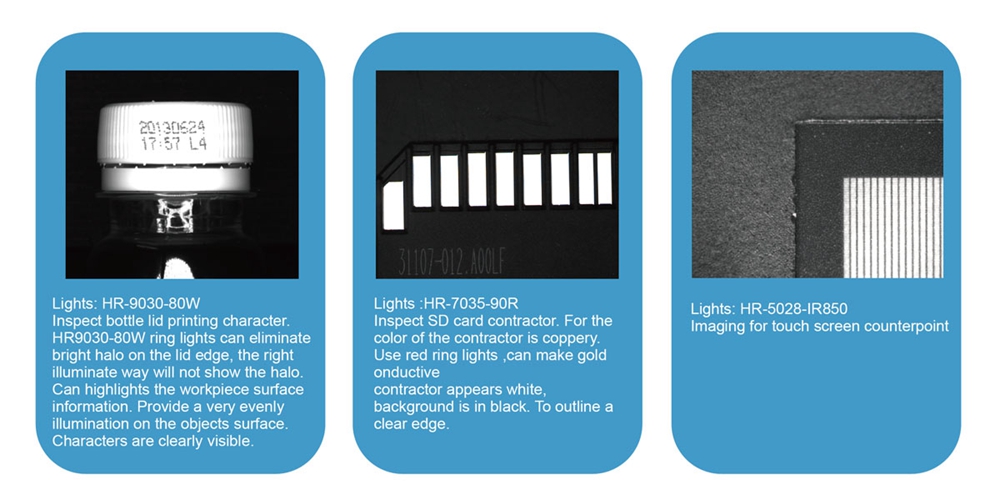

● Lead frame inspection ● Electronic component appearance inspection ● Various types of silhouette observation ● QFP/SOP lead curve inspection |
|||||
Specifications |
||
|---|---|---|
| Emission angle | 60-90° | |
| Supply Voltage | 24 V | |
| Power Cons. |
Red 620-630nm：1.8 W Blue 465-475nm：2.3 W White：2.6 W |
|
| Outer diam. | 34-180 mm (Customizable) | |
| Inner diam. | 10-126 mm (Customizable) | |
| High | 17-24 mm (Customizable) | |
| Connector | SMR-03V-B | |
| Polarity | 1: (+), 2: NC, 3: (-) | |
| Cable Length | 500 mm | |
| Optional Accessory |
Diffusion plate, Polarizing plate. DC extension cable:：1m / 2m / 3m |
|
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
|
|---|
