Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 300 Φmm | |
| Mag.(x) | 0.145x | |
| WD | 465±6 mm | |
| Max. Sesnor Size | 44 Φmm (Full frame 35mm) | |
| Field of View |
Line-2K(20.48mm) 139.3 mm Line-4K(28.67mm) 195.0 mm Line-8K(40.96mm) 278.6 mm 35mm (36.0*24.0) 244.9x163.3 mm |
|
| F/# | F6.7 | |
| MTF | >130lp/mm | |
| D.O.F | ±20.9 mm@F11 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 1234±6 mm | |

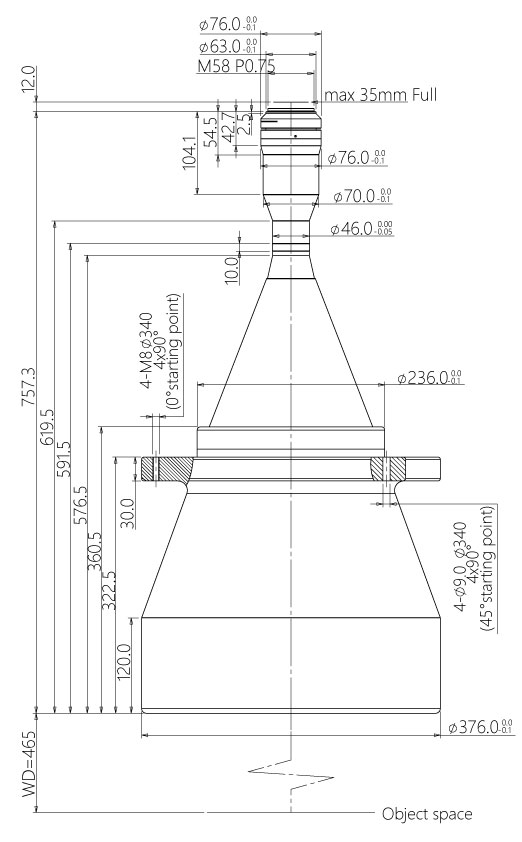

Design |
||
|---|---|---|
| Lens Mount | F-mount | |
| Length | 757.3 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 47.5 Kg | |
