Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | Mars Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | ON Semiconductor | |
| Sensor | PYTHON 300 | |
| Shutter | Global Shutter | |
| Sensor Size | 1/4" | |
| Sensor Type | CMOS | |
| Resolution | 640 px x 480 px | |
| Pixel size | 4.8 μm x 4.8 μm | |
| Frame Rate | 300 fps | |
| Mono/Color | Color | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 60.0 dB | |
| Signal-to-Noise Ratio (typical) | >38.0 dB | |
Camera Data |
||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 8 / 10 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1 | |
| Power Supply | PoE or 6-24 VDC | |
Design |
||
|---|---|---|
| Design | Compact industrial design | |

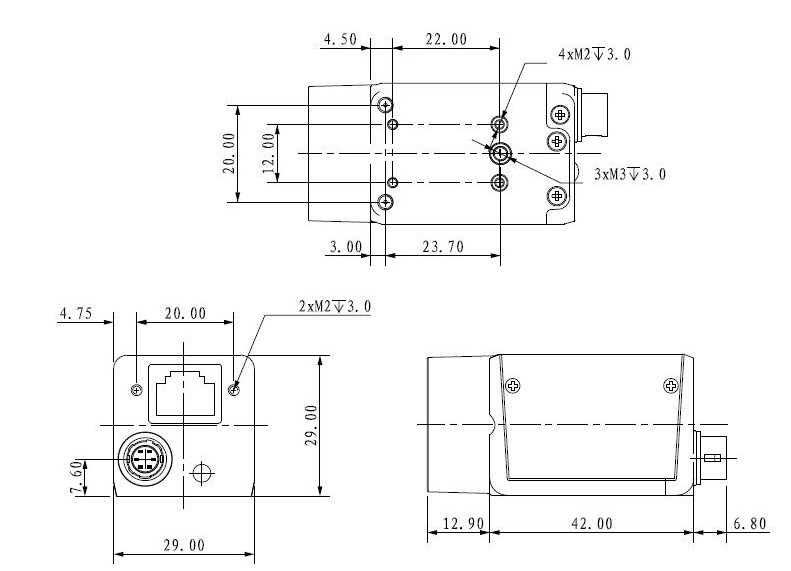

| Dimension (L x W x H) | 42 mm x 29 mm x 29 mm | |
| Lens Mount | C-mount （CS-Mount can be customized） | |
| Working Temperature | -30 - 50°C（Operating），-30 - 80°C（Storage） | |
| Weight（Typical） | 88g | |
Software Environment |
||
|---|---|---|
| Driver , SDK | Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with GigE Vision Protocol | |
| Operating System | Windows，Linux | |
| Conformity | GigE Vision and GenICam | |
