LEM2514CBMP8
VT-LEM industrial lens is a high-performance and cost-effective product designed and manufactured by machine vision based on multi-year market application feedback, professional optical lens assembly and coating process, advanced optical structure, and performance and quality similar to foreign products. Comparable, the entire series reaches 5 million optical points.
Inquire now
Shop now
Product Description

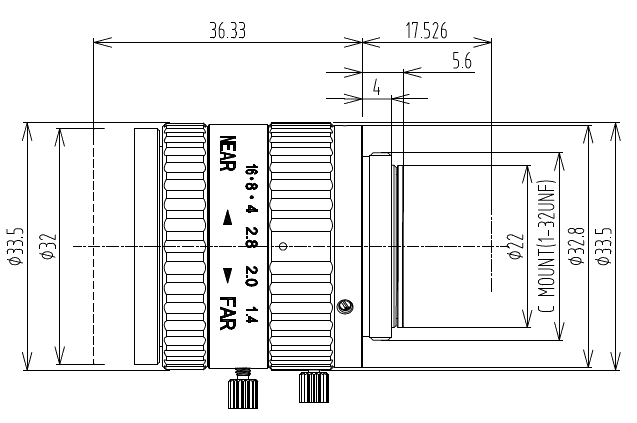

Technical Drawing
Documents & Downloads

General Information

PD No. CP-0427
PD Line CB Series
Type

Standard FA Lens


Optical Specifications

Resolution 8 Mega Pixels
Image Size 2/3" CCD/CMOS
Focal length 25.0 mm
Aperture, F/# F1.4
Flange Back 17.526 mm
Back Focus 12.25 mm
M.O.D 0.3 m
FOV(D×H×V)

D:24.6°

H:20.0°

V:15°

TV Distortion <0.2%
TTL 53.856 mm
Relative Illumination NA
Focus Range NA
Iris Manual
Focus Manual
Max Chief Ray Angle NA
Coating Wavelength 400-950 nm


Mechanical Parameters

Mount C-mount
Filter Size M30.5× 0.5
Built-in ir-cut NA
Front/Rear Effective Dia. Front:Φ22.7 mm / Rear:Φ12.6 mm
Dimension Φ33.5 × 36.33 mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight NA

Standard FA industrial lens
