LEO 25MG-40Tgc
  • 25MP resolution @41.5 fps
  • 10GigE, compatible with GigE, supports long-distance data transmission
  • Compatible with GigE Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard
  • Support Windows
  • Up to 1024 MB local memory for burst transmission and retransmission
Inquire now
Shop now
Product Description
Technical Drawing
Documents & Downloads

Information

PD No. CP-
PD Line LEO Series

Sensor

Sensor Vendor Gpixel
Sensor GMAX0505
Shutter Global Shutter
Sensor Size 1.1"
Sensor Type CMOS
Resolution 5120 px x 5120 px
Pixel size 2.5 μm × 2.5 μm
Frame Rate 41.5 fps
Mono/Color Color
Pixel Format Mono 8/10/12,Bayer BG 8/10/10Packed/12/12Packed,YUV422Packed, YUV422_YUYV_Packed,RGB 8, BGR 8
Exposure Time 13μs to 10s

EMVA Data

Dynamic range 63.0 dB
SNR 36.0 dB

Camera Data

Interface 10GigE
Synchronization

● Soft Trigger

● Hardware Trigger

● Free Run

I/O 1 input(opto-isolated),1 output(opto-isolated) ,1 bidirectional configurable non-isolated I/O, 1 RS232
Power Supply 9-24 VDC

Design

Dimension(L x W x H) 74 mm × 74 mm × 78.8 mm
Lens Mount M58 / C-Mount
Working Temperature 0- 50°C(Operating),-30- 70°C(Storage)
Weight M58:550g/C-mount:600g

Software Environment

Driver , SDK LEO Series Camera Secondary Development Kit(iDatum)or Third-party Software meeting with GigE Vision Protocol
Operating System Windows
Conformity GigE Vision 和 GenICam

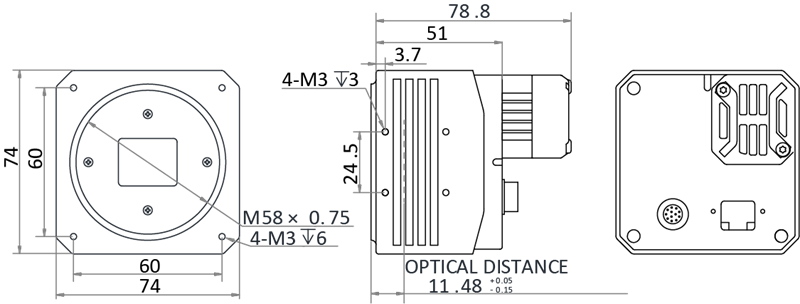

M58:


C-Mount:

LEO Series Industrial Cameras SDK.   iDatum

LEO Series Industrial Cameras User Manual

Product Specification
