VT-LEN72-9040MP150
1、Low magnification lens, suitable for large size inspection
2、Excellent picture clarity consistency, large aperture, low distortion, high relative illumination
3、High resolution and consistency of sharpness at the maximum aperture of F4
4、Maximum image size Φ67 mm
Inquire now
Shop now
Product Description

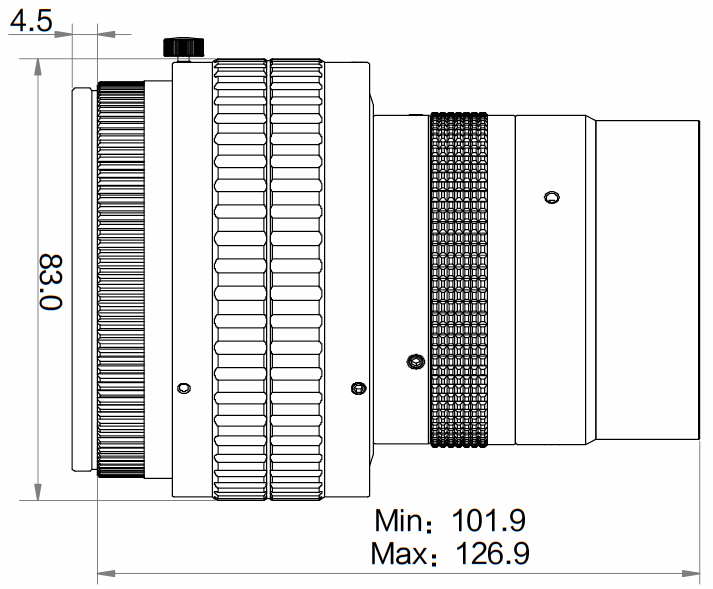

Technical Drawing

General Information

PD No. CP-07
PD Line Large format
Type Large format M72 Mount lens

Optical Specification

EFL 90 mm
Format Φ67 mm
Mag. 0.14x ~ 0.08x
Aperture(F/#) F4.0-F16
Distortion 0.01%
WD 722 ~ 1229 mm
Iris Manual
Focus Manual
Flange BFL 19.55 mm

Design

Mount M72 × P0.75
Filter Thread M58 × 0.75
Dimensions Φ83 × 126.9 mm
Weight 653 g
Operating Temp. -10 ~ 50℃
