Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | CPL Series | |
|
|||||
|---|---|---|---|---|---|
|

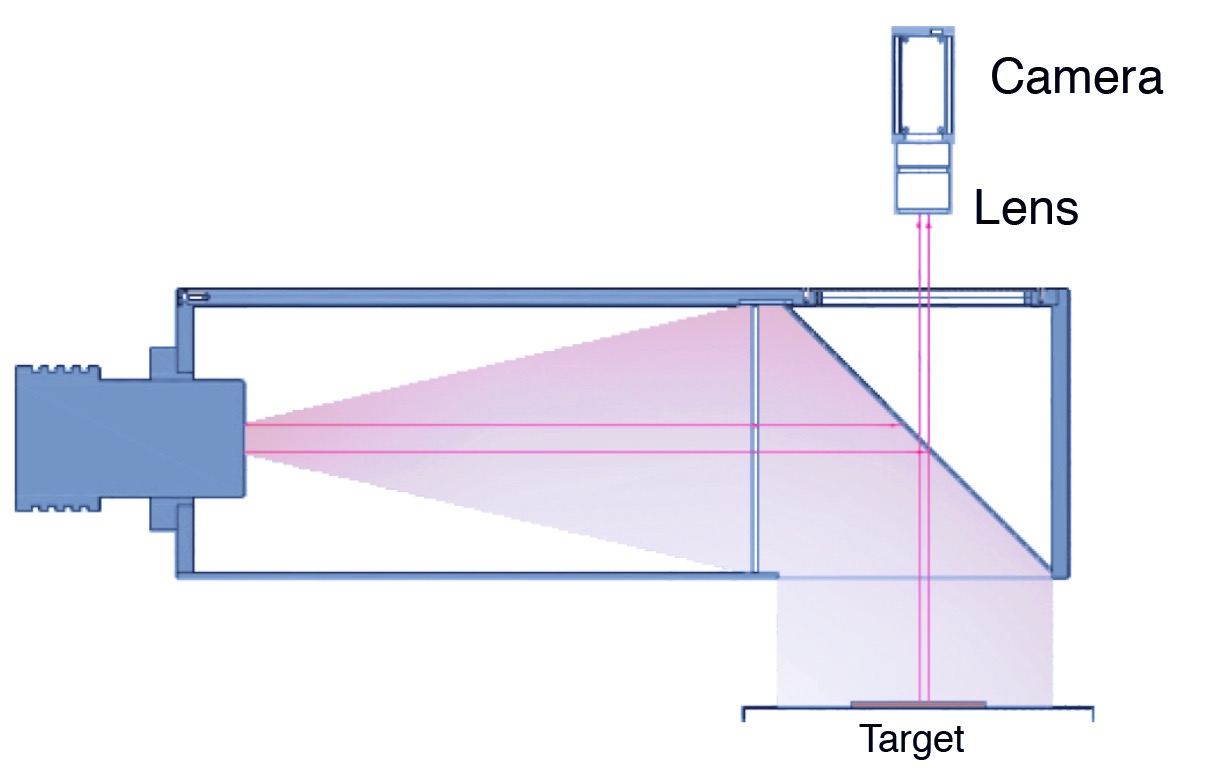

● Special optical system and multi lens assembly ensure homogeneity and parallelism. ● Patented products with imported spectroscope ensure image quality. |
|||||
|
|||||
|---|---|---|---|---|---|
|

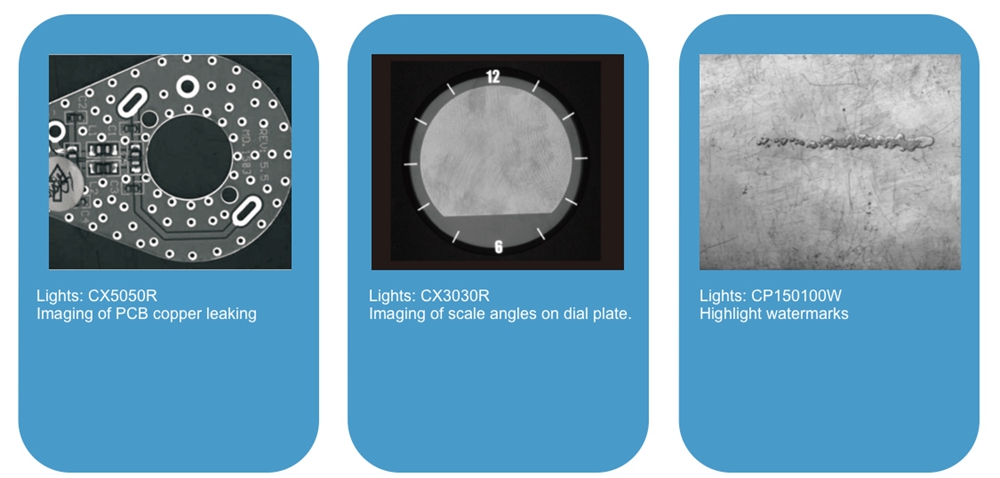

● Inspecting raised characters, scratches, watermarks on card. ● Inspection for surface indentation and scratches on flat hardware. |
|||||
Specifications |
||
|---|---|---|
| Light Area |
Length：20-60 mm Width：20-60 mm |
|
| Supply Voltage | 5 V | |
| Power Cons. |
Blue 465-475nm：1-3 W White：1-3 W |
|
| Length | 128.5-223.5 mm | |
| Width | 45-78 mm | |
| High | 48.5-82 mm | |
| Connector | SMR-03V-B | |
| Polarity | 1: (+), 2: NC, 3: (-) | |
| Cable Length | 500 mm | |
| Optional Accessory |
Diffusion plate, Polarizing plate. DC extension cable:：1m / 2m / 3m |
|
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
|
|---|
