General Information: |
||
|---|---|---|
| Model Number | VT-LEM8520CD-H2 | |
| Series | CD Series | |
| Type | Standard FA Lens | |
Optical Specifications |
||
|---|---|---|
| Resolution | 10 Mega Pixels | |
| Image Size | 4/3" CCD/CMOS | |
| Focal length | 85 mm | |
| Aperture, F/# | F2.0-22 | |
| Back Focus | 24.53 mm (in air) | |
|
FOV(D×H×V) |
D:15.4° H:12.1° V:9.3° |
|
| TV Distortion | 0.04%@y=11.5mm | |
| TTL | 113.9 mm | |
| Focus Range | 1.2-∞ m | |
| Iris | Manual | |
| Focus | Manual | |
| Max Chief Ray Angle | NA | |

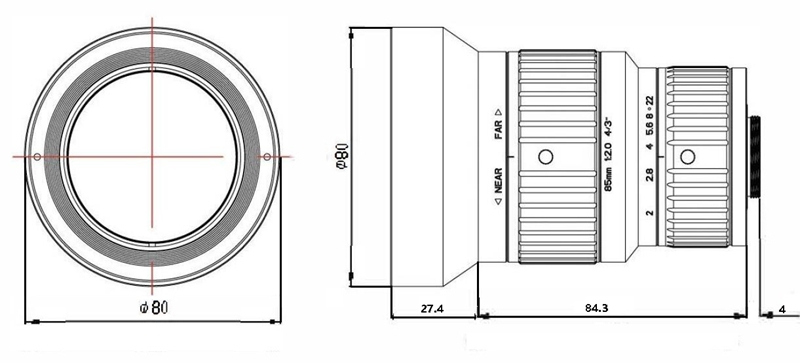

Mechanical Parameters: |
||
|---|---|---|
| Mount | C-mount | |
| Filter Thread | M77.0 x 0.75 | |
| Dimension | Φ80 × 115.7mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
