BTL-0.705X-125-16K(LM)
1. Support 16K 3.5μ line scan cameras;
2. Optimized for 1/2.5"~1.1" C-Mount cameras;
3. Largest FOV from 26mm upto 300mm;
4. Excellent resolution for high pixel cameras;
5. Low distortion, good telecentricity, big aperture and big depth of field for high end application.
Inquire now
Shop now
Product Description

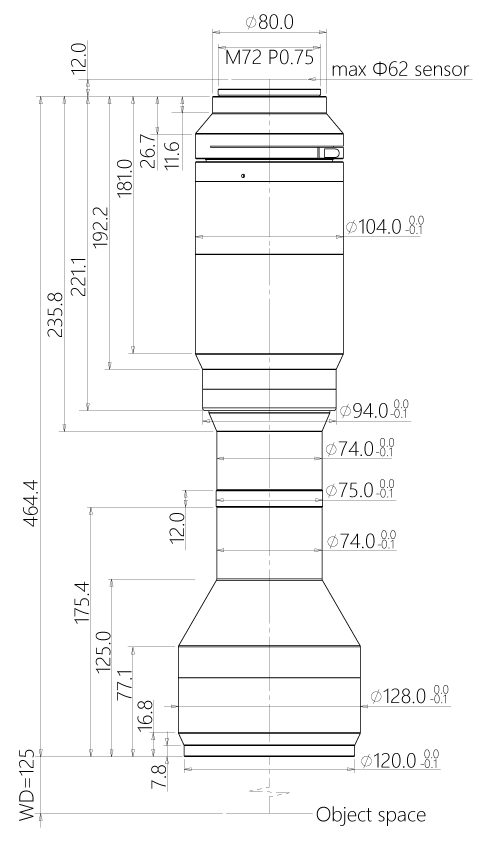

Technical Drawing

Information

PD No. CP-0704
PD Line BTL Series
Type Bi-Telecenteic Lenses

Lens Data

FOV 88 Φmm
Mag.(x) 0.705x
WD 125±3 mm
MAX. Sesnor Size 62 Φmm
Field of View

KAI-47051 (48.7x29.0) 69.1x41.1mm

Linescan-12K 5um (61.44mm) 87.1mm

Linescan-16K 3.5/3.53um (57.4mm) 81.4mm

F/# F7.0
MTF >165lp/mm
D.O.F ±0.6@F7.0
Distortion <0.1%
Telecentricity <0.3°
I/O 601±3 mm

Design

Lens Mount M72
Length 464.4 mm
Temperature -10 - 50°C(Operating),-20 - 60°C(Storage)
Weight 5.2 Kg
