VT-360LEN-0825-230

1. Only one camera is needed to detect the side signs of the object

2. Simultaneous imaging of the outer wall and top of the object

3. Ultra-high resolution, can detect small defects

Inquire now
Shop now
Product Description

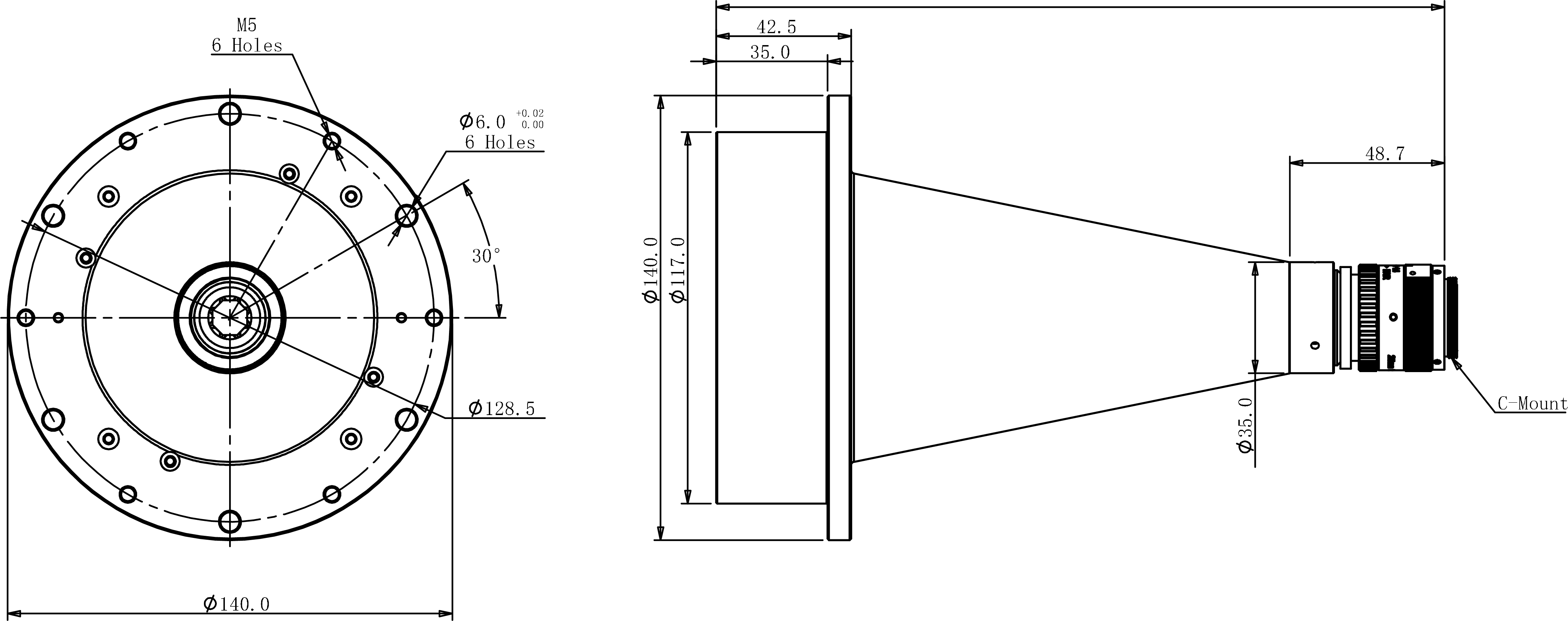

Technical Drawing
Documents & Downloads

General Information

PD No. CP-360
PD Line FA Lens series
Type 360°Multi-Angle Lenses

Optical Specifications

Max Support CCD Size 2/3"
Wavelength Range 450~650nm
Working Distance 20~40mm
MTF30 150 lp/mm
Best Aperture(F/#) F8~16

Mechanical Specifications

Max Diameter 140mm
Length 229.3mm
Mount C-Mount

Electrical Specifications

Illuminator Voltage 24V
Illuminator Power 18W

Side Detection

Object height 5mm The maximum object diameter is 50mm
Object height 20mm The maximum object diameter is 30mm

Side+Top Detection

Object height 10mm The maximum object diameter is 30mm
