Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | LEO Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | Sony | |
| Sensor | IMX 253 | |
| Shutter | Global Shutter | |
| Sensor Size | 1.1" | |
| Sensor Type | CMOS | |
| Resolution | 3840 px x 3000 px | |
| Pixel size | 3.45 μm x 3.45 μm | |
| Frame Rate | 68.1 fps | |
| Mono/Color | Color | |
EMVA Data |
||
|---|---|---|
| Dynamic range | >71 dB | |
| Signal-to-Noise Ratio | 39.7 dB | |
Camera Data |
||
|---|---|---|
| Interface | Cameralink | |
| Pixel Bit Depth | 8 / 10 / 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 1 input(opto-isolated)，1 output(opto-isolated)，1 bidirectional custom non-isolated I / O | |
| Power Supply | 9-24 VDC | |
Design |
||
|---|---|---|

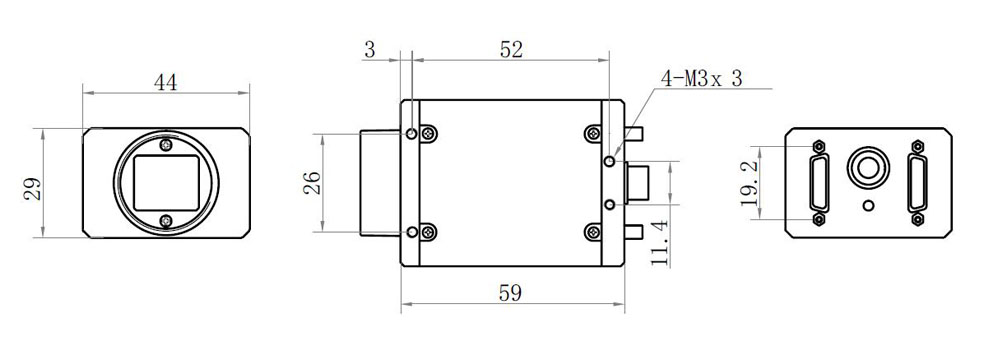

| Dimension (L x W x H) | 44 mm x 29 mm x 59 mm | |
| Lens Mount | C-mount （CS-Mount can be customized） | |
| Working Temperature | 0 - 50°C（Operating），-30 - 70°C（Storage） | |
| Weight（Typical） |
100g
|
|
Software Environment |
||
|---|---|---|
| Driver , SDK | LEO Series Camera Software Suite (iDatum) or Frame Grabber Software Compliant With GenlCam Protocol | |
| Operating System | Windows | |
| Conformity | Cameralink and GenICam | |
