General Information |
||
---|---|---|
PD No. | VT-LEM7526-MP12-H1.1 | |
PD Line | MP12 Series | |
Type | Standard FA Lens |
Optical Specifications |
||
---|---|---|
Resolution | 12 Mega Pixels | |
Image Size | 1.1" CCD/CMOS | |
Focal length | 75.0 mm | |
Aperture, F/# | F2.6 | |
Working Distance | 0.3 mm~∞ | |
Flange Back | 15.76 mm | |
FOV(D×H×V) |
D:7.53° H:6.05° V:4.65° |
|
TV Distortion | <-0.35% | |
Iris | Manual | |
Focus | Manual | |
Max Chief Ray Angle | NA | |
Coating Wavelength | 400-700 nm |
Mechanical Parameters |
||
---|---|---|
Mount | C-mount | |
Filter Size | M34× 0.5 | |
Built-in ir-cut | NA | |
Front/Rear Effective Dia. | NA | |

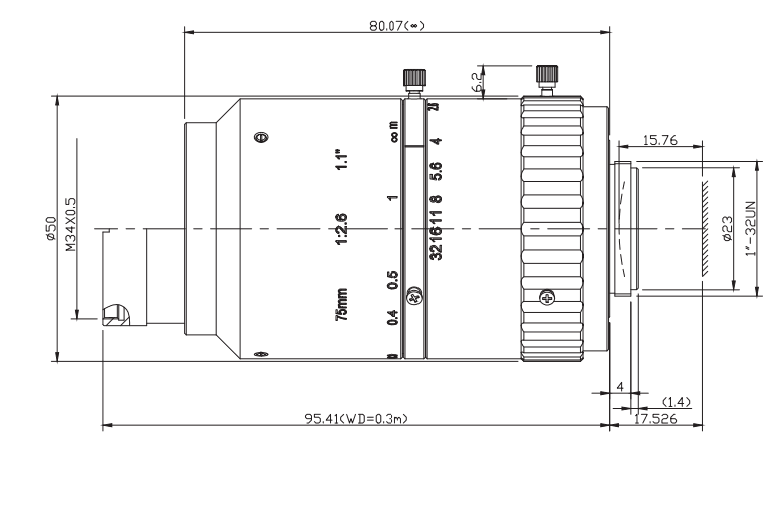

Dimension | Φ50 × 95.41 mm | |
Weight | 270g |
