Information |
||
|---|---|---|
| PD No. | CP-0700 | |
| PD Line | Mars Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | ON Semiconductor | |
| Sensor | XGS8000 | |
| Shutter | Global Shutter | |
| Sensor Size | 1/1.1" | |
| Sensor Type | CMOS | |
| Resolution | 4096 px x 2160 px | |
| Pixel size | 3.2 μm x 3.2 μm | |
| Frame Rate | 14 fps | |
| Mono/Color | Mono | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 70.0 dB | |
Camera Data |
||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1 | |
| Power Supply | PoE or 6-24 VDC | |
Design |
||
|---|---|---|
| Design | Compact industrial design | |

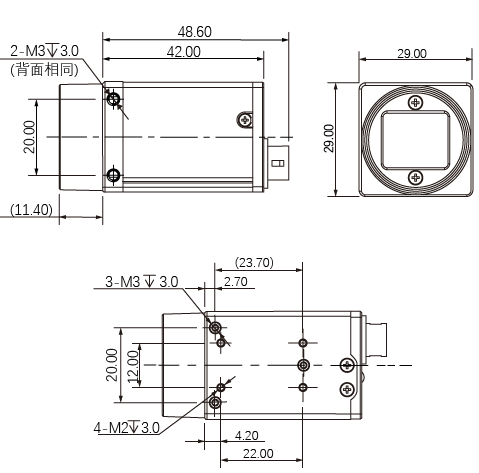

| Dimension (L x W x H) | 29 mm x 29 mm x 42 mm | |
| Lens Mount | C-mount | |
| Working Temperature | -30- 50°C（Operating），-30- 80°C（Storage） | |
| Weight（Typical） | 88g | |
Software Environment |
||
|---|---|---|
| Driver , SDK | Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with GigE Vision Protocol | |
| Operating System | Windows，Linux | |
| Conformity | GigE Vision and GenICam | |
