VT-360LEN-IN02

1. High resolution and compact design

2. Can clearly detect hidden features and defects

3. Highlight the tiny defects of the detected object

4. The lens comes with an integrated LED light source

5. Able to detect tiny defects under a very wide viewing angle

6. Applicable to objects whose internal features can only enter the hole through the internal inspection lens

Inquire now
Shop now
Product Description

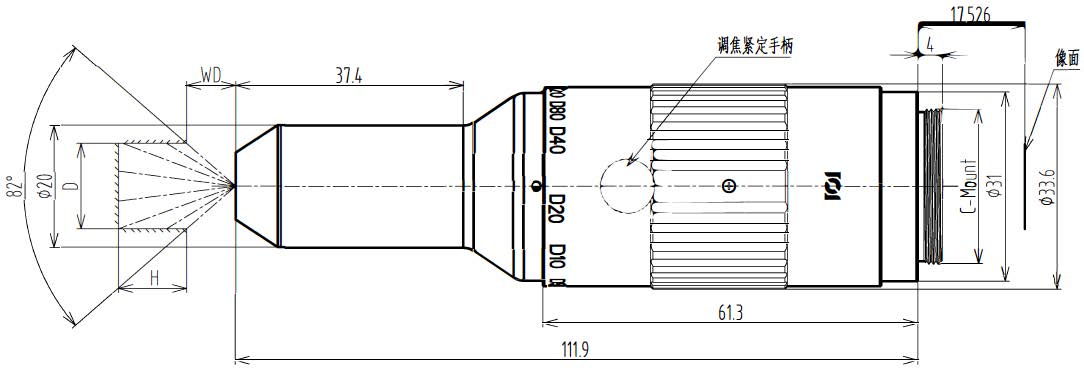

Technical Drawing
Documents & Downloads

General Information

PD No. CP-0360
PD Line FA Lens series
Type 360 OUTER/INNER SURFACE LENSES

Optical Specifications

Sensor 2/3"
Image Size Φ6.6
WD 2.7 mm

35 mm

70 mm

F/NO 8

Measured object

Diameter of measuring object:

5mm

60mm

120mm

Measuring height:

5 mm

61.4 mm

123 mm

Design

Mount C-mount
Illumination

External Illumination
