Information |
||
|---|---|---|
| PD No. | CP-0823 | |
| PD Line | LT2 Series | |
Input Features |
||
|---|---|---|
| Voltage Range | AC100~240V | |
| PMW Frequency | 50/60HZ | |
| Inrush Current | 15A(AC100V),30A(AC240V)*COOL START | |
Output Features |
||
|---|---|---|
| Output Voltage | DC48V 5A MAX | |
| Output Power | 4 channels in total:60W MAX | |
| Strobe Lighting Time | 10~990us | |
| Light Intensity | The light intensity is set as 10% to 100% of the pulse width | |
| Lighting Delay | 8us MAX | |
Trigger Features |
||
|---|---|---|
| Trigger Mode | Positive/Negative | |
| Trigger Input Voltage | 5~24V | |
Over voltage protection |
||
|---|---|---|
| Activated when output current overload 7% or higher, reset by reopening the power supply | ||
Environment |
||
|---|---|---|
| Operating Temperature | 0 ~ 40°C | |
| Storage Temperature | -10 ~ 50°C | |
Others |
||
|---|---|---|

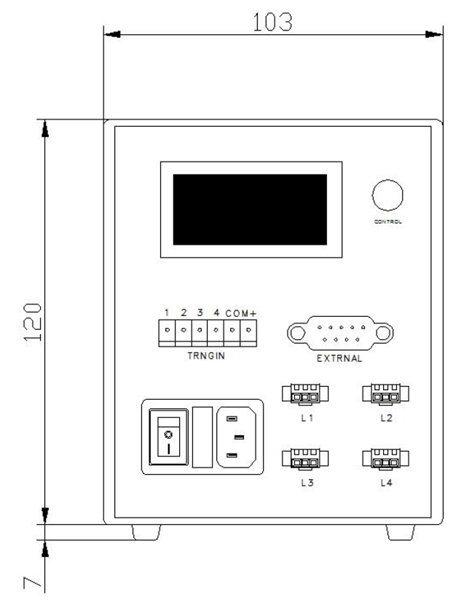

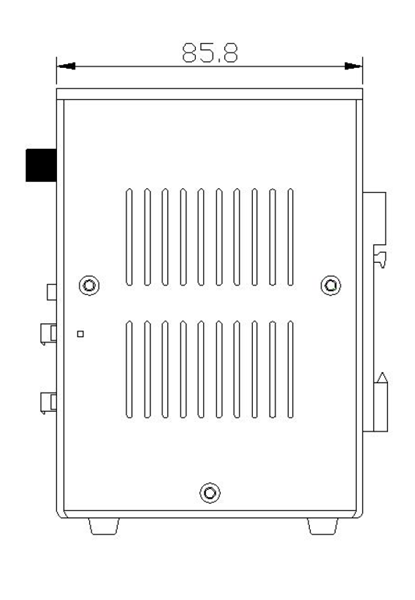

| Shell Dimension | 96*120*88 mm | |
| Surfacing | Spray-paint | |
