Nep-HD200AF
1、HD video real-time display-1080P-4K
2、High quality sensor-The whole series adopt Sony、Panasonic and other high quality image sensors
3、Image store-Large capacity internal or external storage interface
4、Simple setting(HD series)-Through the panel keypad or remote control easily set the parameter
5、Smart measurement(SVS Series)-Built-in software, through keyboard and mouse observe real-time measurement data
Inquire now
Shop now
Product Description
Technical Drawing
Documents & Downloads

Information

PD No. CP-0823
PD Line Nepture Series

Sensor

Resolution 1920 X 1080
Sensor Size 1/2"
Pixel size 3.75 X 3.75μm
Shutter Rolling Shutter
Frame Rate 1080P @ 60fps

Camera Data

Hardware Function High Speed AF(Automatic / Manual、Focus / Global)
Video Output 1080P @ HDMI
Power Supply DC-12V / 1A

Design

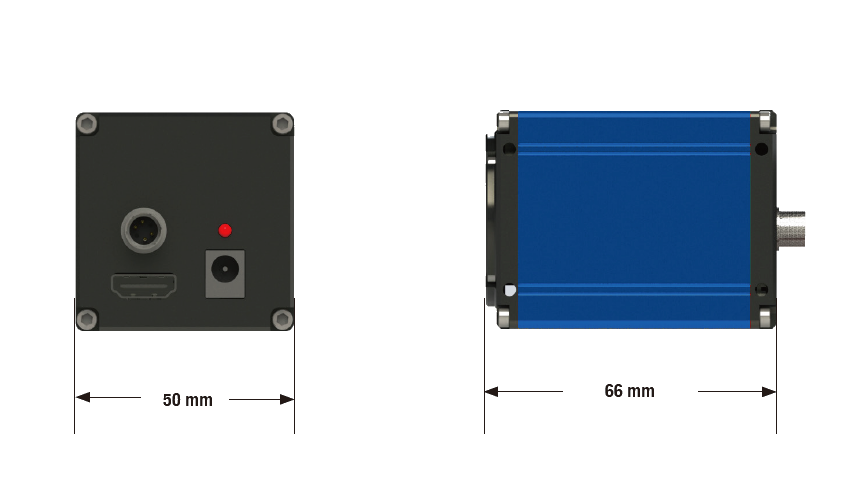

Dimension (L x W x H) 66 mm x 50 mm x 50 mm
Lens Mount C-mount (CS-Mount can be customized)
Working Temperature -30 - 50°C(Operating),-30 - 80°C(Storage)

Neptune Series Cameras User Manual
