Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | Pi Series | |
|
|||||
|---|---|---|---|---|---|
|

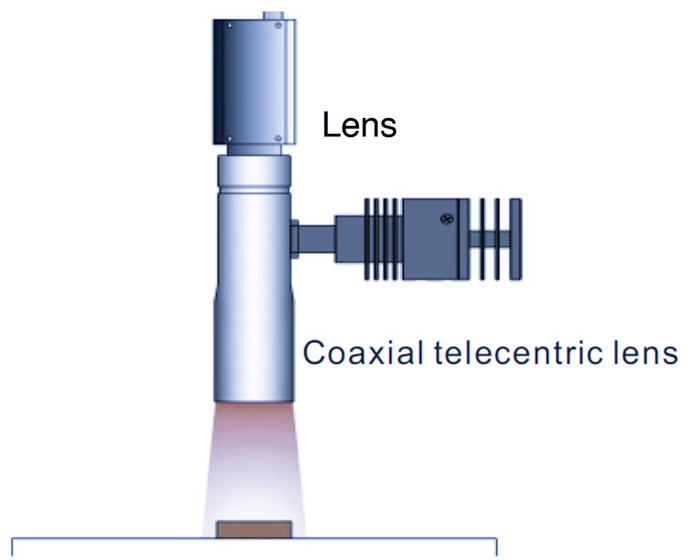

● It is a light source for a telocentric lens. With coaxial lens, it can replace coaxial lights. ● High output LED, compact design, high light intensity. ● Efficient cooling method is used to prolong service life. |
|||||
|
|||||
|---|---|---|---|---|---|
|

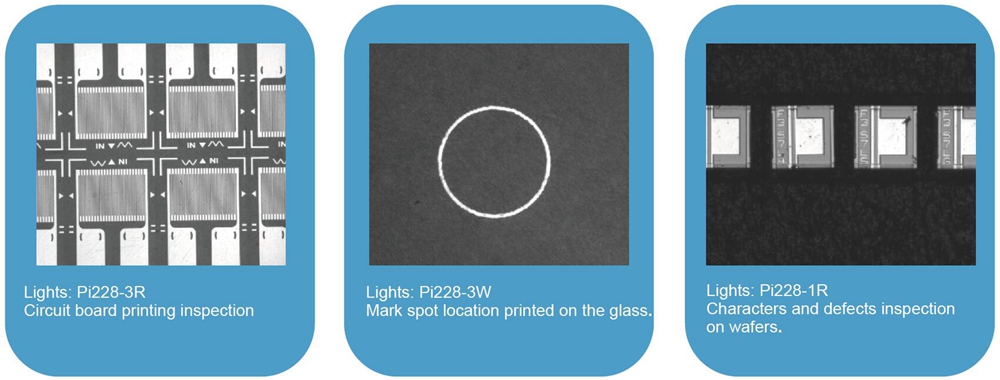

● Used on LED die bonder, chip inspection, mark points location. ● Working with coaxial lens to inspect small component. ● Suitable for machine vision system with limited installing space. |
|||||
Specifications |
||
|---|---|---|
| Supply Voltage | 5 V | |
| Power Cons. |
Red 620-630nm：0.9-2.5 W Blue 465-475nm：1.4-2.8 W White：1.3-2.5 W |
|
| Dimensions | 8 mm | |
| Connector | SMR-03V-B | |
| Polarity | 1: (+), 2: NC, 3: (-) | |
| Cable Length | 500 mm | |
| Optional Accessory |
Diffusion plate, Polarizing plate. DC extension cable:：1m / 2m / 3m |
|
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
|
|---|
