Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BFC Series | |
|
|||||
|---|---|---|---|---|---|
|
● Through unique photo-conductive material, light scatters over and over, which can reduce directive of light ray and make it uniform.
|
|||||
|
|||||
|---|---|---|---|---|---|
|

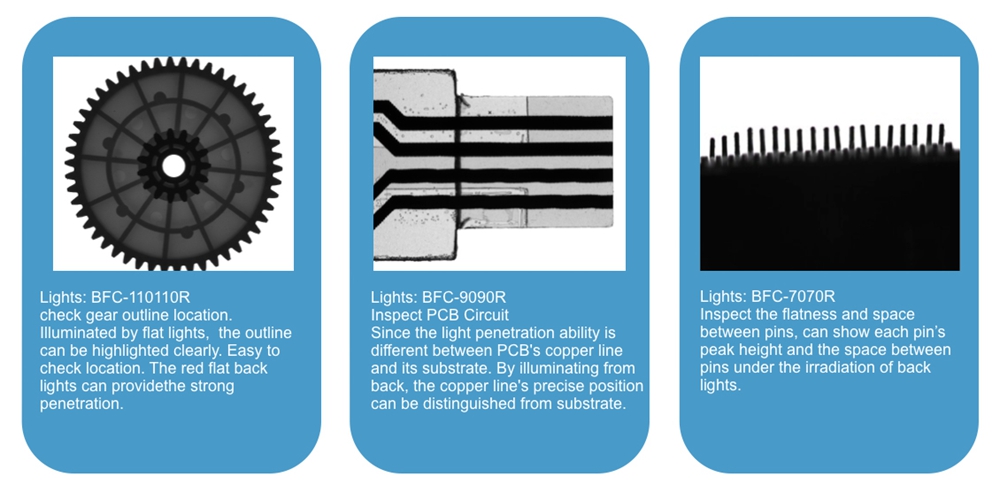

● Dimension measuring, visual inspection ● Liquid level inspection ● Pinhole inspection ● Burr inspection for metal parts ● Inspection for tears/stains on packaging, etc.. |
|||||
Specifications |
||
|---|---|---|
| Light Area |
Length：50-600 mm Width：50-600 mm |
|
| Supply Voltage | 24 V | |
| Power Cons |
Red 620-630nm：2.0-8.0 W Blue 465-475nm：2.0-33.6 W White：2.0-33.6 W |
|
| Length | 82-634 mm (Customizable) | |
| Width | 82-434 mm (Customizable) | |
| High | 10.5 mm (Customizable) | |
| Connector | SMR-03V-B | |
| Polarity | 1: (+), 2: NC, 3: (-) | |
| Cable Length | 500 mm | |
| Optional Accessory |
Diffusion plate, Polarizing plate. DC extension cable:：1m / 2m / 3m |
|
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
|
|---|
