Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | CLW2 Series | |
| Type | Bi-Telecenteic Lenses | |
Lens Date |
||
|---|---|---|
| Mag.(x) | 0.55x | |
| WD | 220±3 mm | |
| MAX. Sesnor Size | 18.0 Φmm(1.1") | |
| Field of View |
1”KAI-04050(12.85x9.64) 23.4x17.5 1”CMV4000(11.26x11.26) 20.5x20.5 1”ICX674/694/814(12.5x10.0) 22.7x18.2 |
|
| F/# | F10.1 | |
| MTF | >90lp/mm | |
| D.O.F | ±1.3mm@F10.1 | |
| Distortion | <0.1% | |
| Telecentricity | <0.13° | |

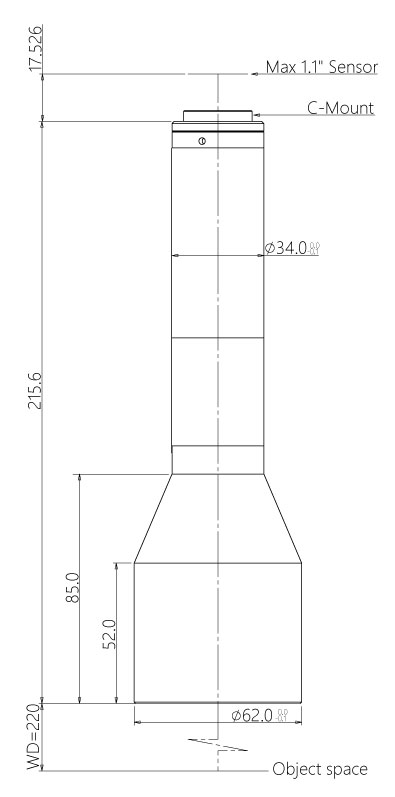

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| With coaxial light | No | |
| Lenght | 215.6 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
