BTL-0.246XH-410-16K(LM)

1. Optimized for 1/2.5"~1.1" C-Mount cameras;
2. Largest FOV from 26mm upto 300mm;
3. Excellent resolution for high pixel cameras;
4. Low distortion, good telecentricity, big aperture and big depth of field for high end application.

Inquire now

Shop now

Product Description

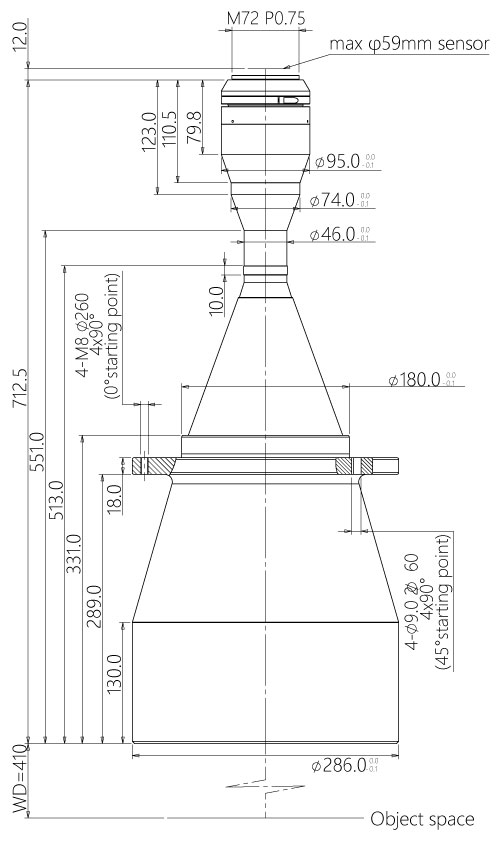

Technical Drawing

Documents & Downloads

Information
	PD No.	CP-0704
	PD Line	BTL Series
	Type	Bi-Telecenteic Lenses

Lens Data
	FOV	240 Φmm
	Mag.(x)	0.246x
	WD	410±6 mm
	MAX. Sesnor Size	59 Φmm
	Field of View	KAI-47051(48.7*29.0) 198.0x117.9 mm 16Kx3.5/3.53um(57.4mm) 233.3 mm 8Kx7um/7.04um(57.4mm) 233.3 mm
	F/#	F8.7
	MTF	>100lp/mm
	D.O.F	±14.6mm@F22
	Distortion	<0.1%
	Telecentricity	<0.1°
	I/O	1135±6 mm
