Information |
||
|---|---|---|
| PD No. |
CP-1385 |
|
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 42 Φmm | |
| Mag.(x) | 0.438x | |
| WD | 118±3 mm | |
| Max. Sesnor Size | 18.4(1.1") Φmm | |
| Field of View | 1.1" IMX253(14.19*10.38) 32.4x23.7 mm | |
| F/# | F7.2 | |
| MTF | >115lp/mm | |
| D.O.F | ±3.3 mm@F16 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 289±3 mm | |

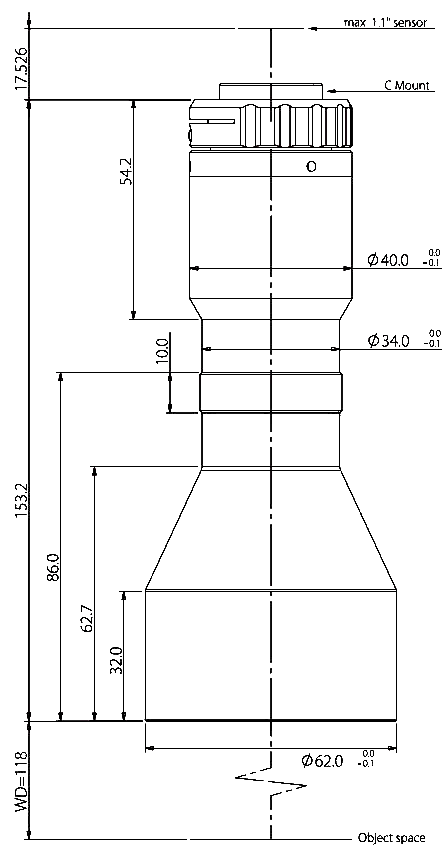

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 153.2 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 0.5 Kg | |
