BTL-0.259X-158-H1(LM)

1. Optimized for 1/2.5"~1.1" C-Mount cameras;
2. Largest FOV from 26mm upto 300mm;
3. Excellent resolution for high pixel cameras;
4. Low distortion, good telecentricity, big aperture and big depth of field for high end application.

Inquire now

Shop now

Product Description

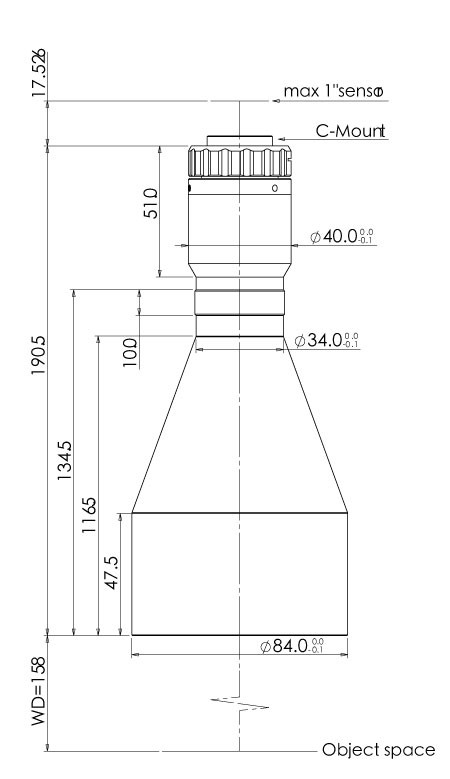

Technical Drawing

Documents & Downloads

Information
	PD No.	BTL-0.259X-158-H1(LM)
	PD Line	BTL Series
	Type	Bi-Telecentric Lenses

Lens Data
	FOV	64 Φmm
	Mag.(x)	0.259x
	WD	158±3 mm
	Max. Sesnor Size	16.6(1") Φmm
	Field of View	1.1" KAI-04050(12.85x9.64) 49.8x37.4 1.1" CMV4000(11.26x11.26) 43.6x43.6 1.1" ICX674/694/814(12.5x10.0) 48.5x38.8
	F/#	F6.5
	MTF	>135lp/mm
	D.O.F	±14.8 mm@F16
	Distortion	<0.1%
	Telecentricity	<0.1°
	I/O	366±3 mm
