[ RETURN LIST ] HOME>PRODUCTS>INDUSTRIAL LENSES
PRODUCTS
BTL-0.214X-118-118
1. Optimized for 1/2.5"~1.1" C-Mount cameras;
2. Largest FOV from 26mm upto 300mm;
3. Excellent resolution for high pixel cameras;
4. Low distortion, good telecentricity, big aperture and big depth of field for high end application.
Inquire now
Shop now
Product Description

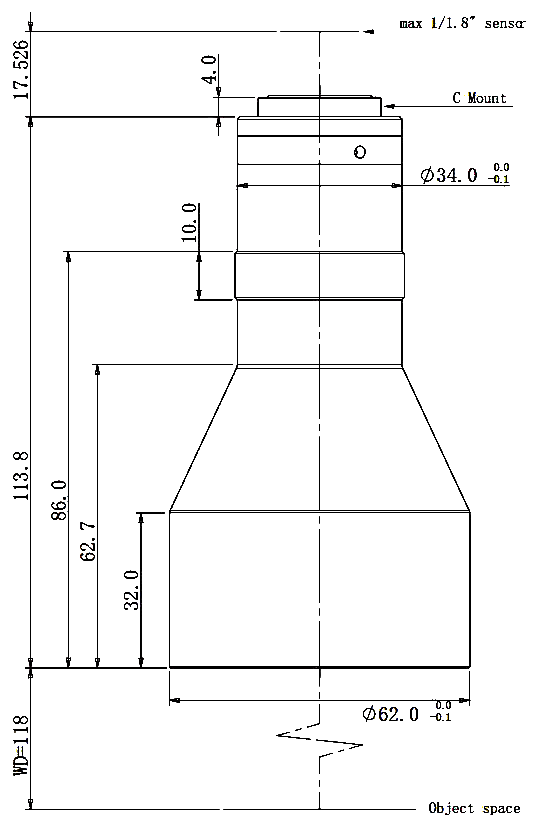

Technical Drawing
Documents & Downloads

Information

PD No. CP-1731
PD Line BTL Series
Type Bi-Telecentric Lenses

Lens Data

FOV 42 Φmm
Mag.(x) 0.214x
WD 118±3 mm
Max. Sesnor Size 9.0(1/1.8") Φmm
F/# F4.6
MTF >195lp/mm
D.O.F ±9.6 mm@F11
Distortion <0.1%
Telecentricity <0.1°
I/O 249±3 mm

Design

Lens Mount C-mount
Length 113.8 mm
Temperature -10 - 50°C(Operating),-20 - 60°C(Storage)
Weight 0.4 Kg
High Pricision Bi-Telecentric Lenses

Telecentric lens
