Information |
||
|---|---|---|
| PD No. | CP-1386 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 56 Φmm | |
| Mag.(x) | 0.143x | |
| WD | 138±3 mm | |
| Max. Sesnor Size | 8.0(1/2") Φmm | |
| F/# | F4.2 | |
| MTF | >210lp/mm | |
| D.O.F | ±21.5 mm@F11 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 304±3 mm | |

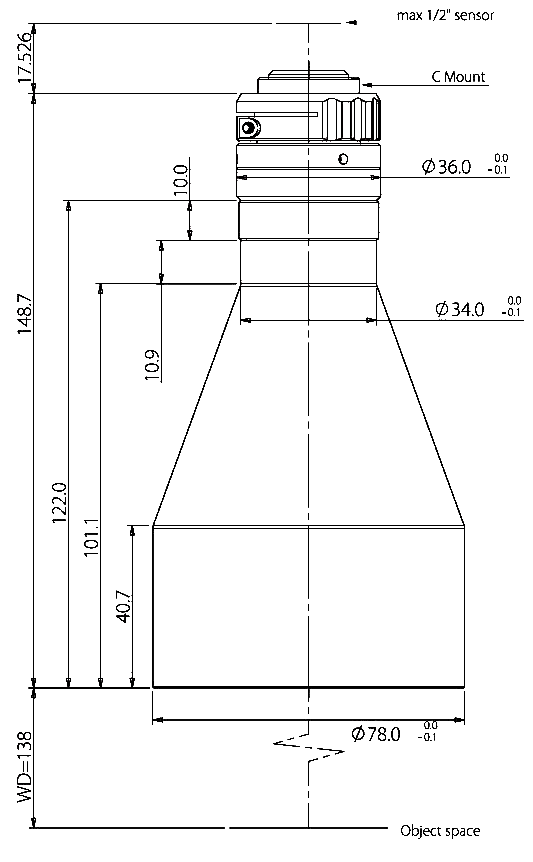

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 148.7 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 0.6 Kg | |
