BTL-0.308X-73-12(LM)
1. Optimized for 1/2.5"~1.1" C-Mount cameras;
2. Largest FOV from 26mm upto 300mm;
3. Excellent resolution for high pixel cameras;
4. Low distortion, good telecentricity, big aperture and big depth of field for high end application.
Inquire now
Shop now
Product Description

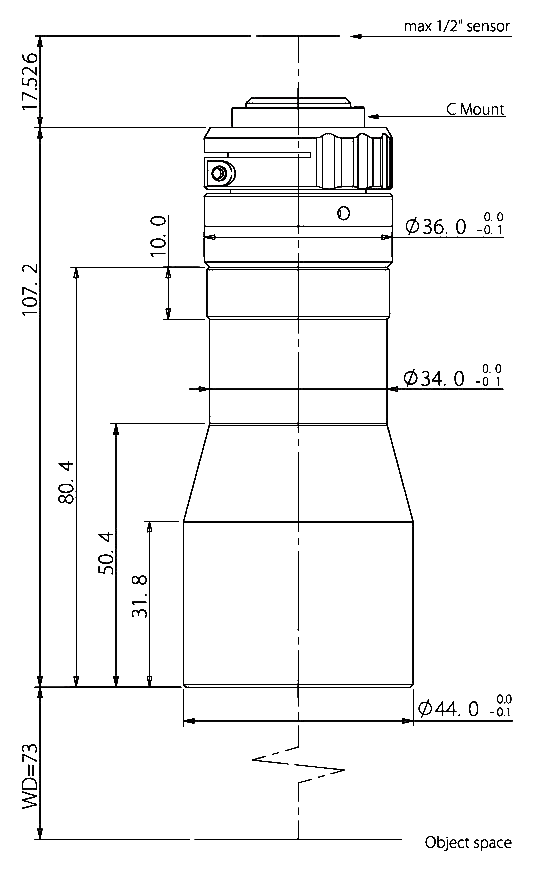

Technical Drawing
Documents & Downloads

Information

PD No. CP-1334
PD Line BTL Series
Type Bi-Telecentric Lenses

Lens Data

FOV 26 Φmm
Mag.(x) 0.308x
WD 73±1 mm
Max. Sesnor Size 8.0(1/2") Φmm
F/# F4.2
MTF >175lp/mm
D.O.F ±4.6 mm@F11
Distortion <0.1%
Telecentricity <0.1°
I/O 198±1 mm

Design

Lens Mount C-mount
Length 107.2 mm
Temperature -10 - 50°C(Operating),-20 - 60°C(Storage)
Weight 0.3 Kg
