General Information |
||
---|---|---|
PD No. | CP-574 | |
PD Line | M12 Series | |
Type |
Standard FA Lens
|
Optical Specifications |
||
---|---|---|
Resolution | 3 Mega Pixels | |
Image Size | 1/1.8" CCD/CMOS | |
Focal length | 5.5 mm | |
Aperture, F/# | F1.8 | |
Back Focus | 6.87 mm | |
M.O.D | 0.2 m | |
FOV(D×H×V) |
D:76° H:64.5° V:51° |
|
TV Distortion | -2% | |
TTL | 29.54 mm | |
Relative Illumination | >45% | |
Iris | Fixed | |
Max Chief Ray Angle | 12.7° | |
Coating Wavelength |
400-950 nm
|
Mechanical Parameters |
||
---|---|---|
Mount | S-mount(M12) | |
Filter Size | NA | |
Built-in ir-cut | NA | |
Front/Rear Effective Dia. | Φ19.5 / Φ7.55 | |

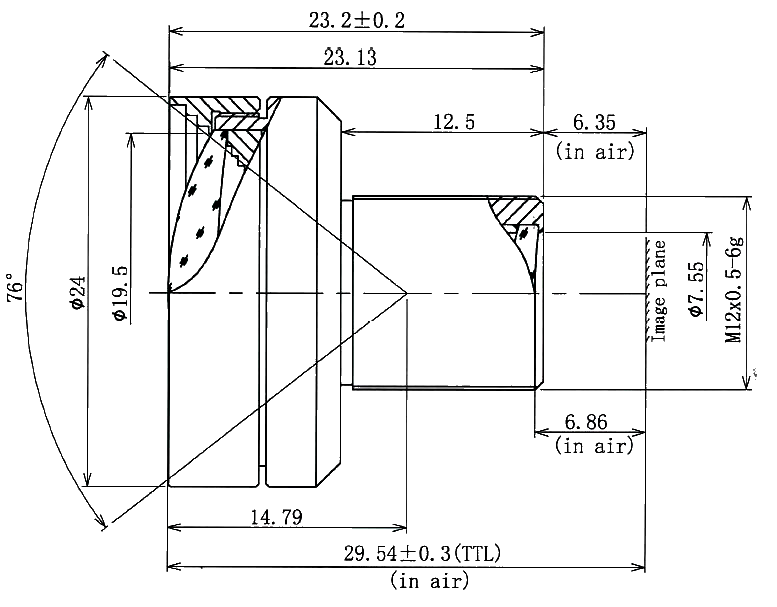

Dimension | Φ24 × 23.2 mm | |
Temperature Range | -10- 50°C(Working),-20- 60°C(Storage) | |
Weight | NA |
