VT-LEM0818(i)-M12-MP
1. Megapixel High Resolution Design
2. Optimized for 1/3” and 1/2” Sensors with Small Pixels
3. Multiple f/# Options for Performance
4. High Cost Performance
Inquire now
Shop now
Product Description

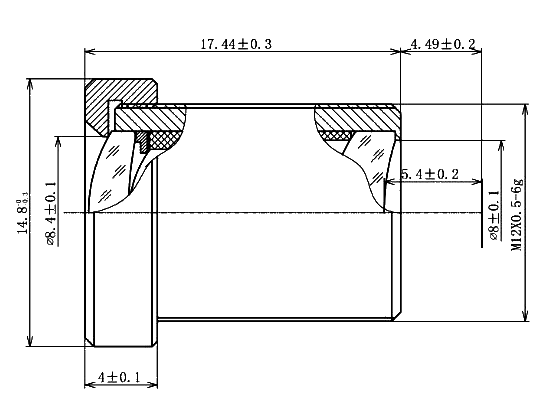

Technical Drawing
Documents & Downloads

General Information

PD No. CP-663
PD Line M12 Series
Type Standard FA Lens


Optical Specifications

Resolution 1 Mega Pixels
Image Size 1/3" CCD/CMOS
Focal length 8.0 mm
Aperture, F/# F1.8
Back Focus 5.4 mm
M.O.D 0.2 m
FOV(D×H×V)

D:45°

H:35.5°

V:26°

TV Distortion NA
TTL 22.0±0.3 mm
Iris Fixed
Coating Wavelength 400-950 nm


Mechanical Parameters

Mount S-mount(M12)
Filter Size NA
Built-in ir-cut NA
Front/Rear Effective Dia. Φ8.4 / Φ8
Dimension Φ14.8 × 17.44±0.3 mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight NA

Standard FA industrial lens
