General Information |
||
---|---|---|
PD No. | CP-0704 | |
PD Line | Line Scan Series | |
Type | Line Scan V-Mount Lens |
|
||
---|---|---|
Resolution | 8k7μ | |
Format | 64 mm | |
Focal Length | 60.0 mm | |
Aperture, F/# | F4.0 | |
Flange Back | 63.31 mm | |
Object Distance | 404.4 mm | |
TV Distortion | 0.2% | |
TTL | 63.4 | |
Conjuguate Distance | 619.1 mm | |
Magnificatioh | 0.167x | |
Iris | Manual | |
Focus | Manual | |
Max. Shief Ray Angle | NA | |
Coating Wavelength | 400-950 nm |
|
||
---|---|---|
Mount | V-mount | |
Filter Size | NA | |
Bulit-in IR-cut | NA | |
Front/Rear Effective Dia. | NA | |

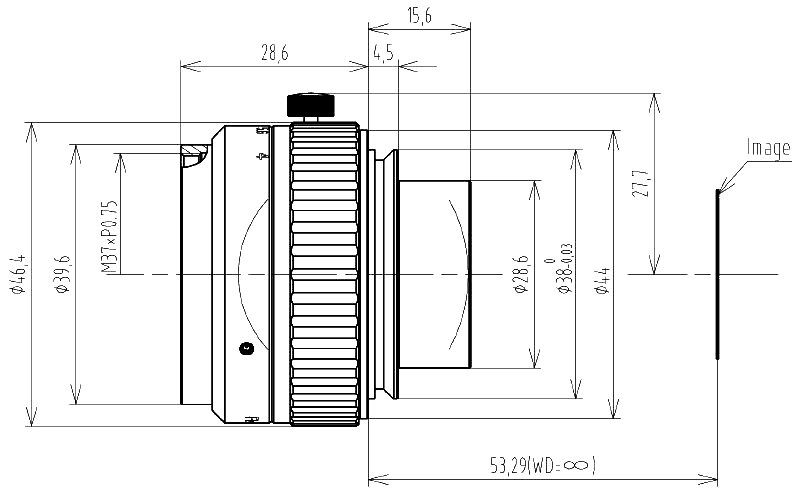

Dimension | Φ46.4 × 28.6 mm | |
Temperature Range | -10- 50°C(Working),-20- 60°C(Storage) | |
Weight | NA |
