General Information |
||
---|---|---|
PD No. | CP-1131 | |
PD Line | Large format | |
Type | Large format F/T Mount lens |
|
||
---|---|---|
Resolution | 29MP | |
Format | 64mm | |
Focal Length | 60.0 mm | |
Aperature, F/# | F4 | |
Mag. Range | 0.04x-0.33x | |
Standard Mag. | 0.167x | |
Flange Back | 46.5 | |
|
|
|
Object Distance M.O.D. |
384.9mm NA |
|
|
|
|
TV Distortion | <0.6% | |
TTL | 103.8 | |
Relative Illumination | NA | |
Focus Range | NA | |
Iris | Manual | |
Focus | Manual | |
Max. Chief Ray Angle | NA | |
Coating Wavelength | 400-950 nm |
|
||
---|---|---|
Mount | F-mount | |
Filter Size | M65 × 0.75 | |
Bulit-in IR-cut | NA | |
Front/Rear Effective Dia. | NA | |

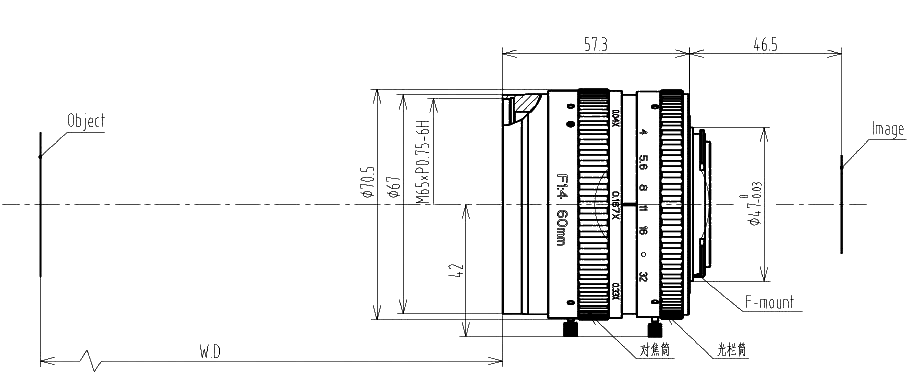

Dimension | Φ70.5× 57.3 mm | |
Temperature Range | -10- 50°C(Working),-20- 60°C(Storage) | |
Weight | NA |
