General Information |
||
---|---|---|
PD No. | CP-0618 | |
PD Line | Large format | |
Type | Large format F/T Mount lens |
|
||
---|---|---|
Resolution | 30lp/mm 5 MP | |
Format | 43mm | |
Focal Length | 35.0 mm | |
Aperature, F/# | F2.5-22 | |
Flange Back | NA | |
Back Focus | 34.35 mm | |
M.O.D | 0.3 m | |
FOV(D×H×V) |
D:52.3° H:/° V:/° |
|
TV Distortion | <-3% | |
TTL | NA | |
Relative Illumination | NA | |
Focus Range | NA | |
Iris | Manual | |
Focus | Manual | |
Max. Chief Ray Angle | NA | |
Coating Wavelength | 400-950 nm |
|
||
---|---|---|
Mount | F-mount | |
Filter Size | M52 × 0.75 | |
Bulit-in IR-cut | NA | |
Front/Rear Effective Dia. | NA | |

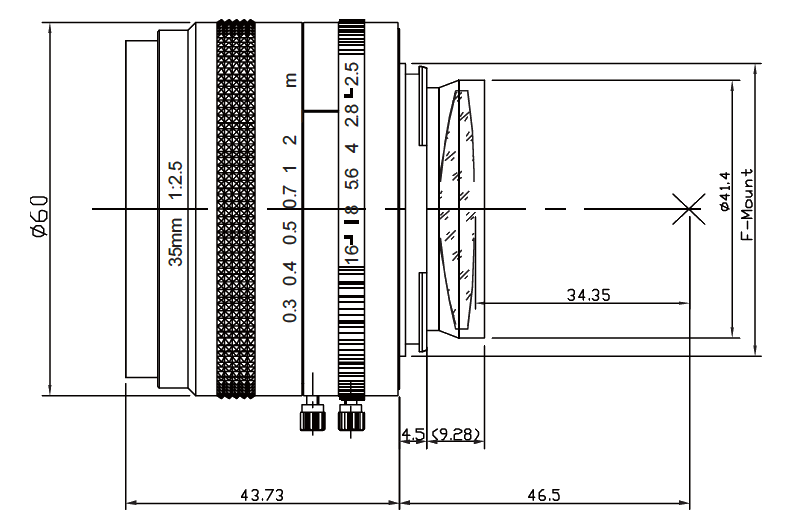

Dimension | Φ60 × 43.73 mm | |
Temperature Range | -10- 50°C(Working),-20- 60°C(Storage) | |
Weight | 199.5 g |
