VT-LHF2828MP5
1. Wide wavelength from 400~950nm
2. Full-frame design covering φ43.2mm
3. Support 4K line scan cameras
4. Low cost
Inquire now
Shop now
Product Description

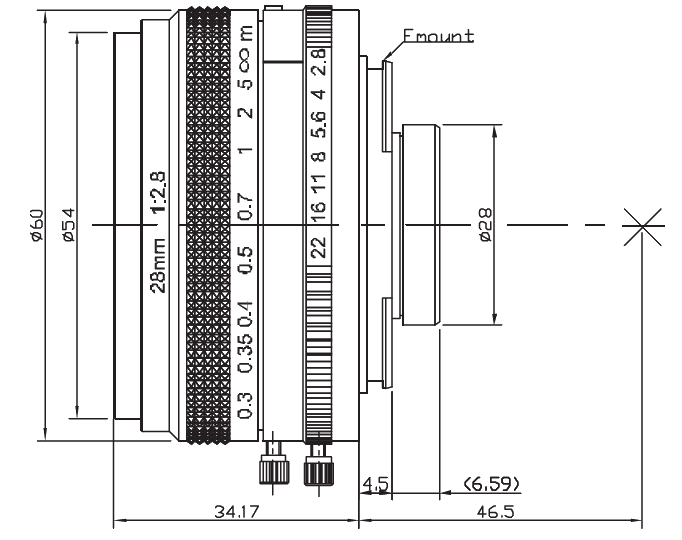

Technical Drawing
Documents & Downloads

General Information

PD No. CP-1034
PD Line Large format
Type Large format F/T Mount lens


Optical Specification

Resolution 30lp/mm 5 MP
Format 43mm
Focal Length 28.0 mm
Aperature, F/# F2.8-22
Flange Back NA
Back Focus 35.7 mm
M.O.D 0.3 m
FOV(D×H×V)

D:74°

H:/°

V:/°

TV Distortion <-3%
TTL NA
Relative Illumination NA
Focus Range NA
Iris Manual
Focus Manual
Max. Chief Ray Angle NA
Coating Wavelength 400-950 nm


Mechanical Parameters

Mount F-mount
Filter Size M52 × 0.75
Bulit-in IR-cut NA
Front/Rear Effective Dia. NA
Dimension Φ60 × 34.17 mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight 199.5 g

Line Scan industrial lens
