Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | WR Series | |
|
|||||
|---|---|---|---|---|---|
|

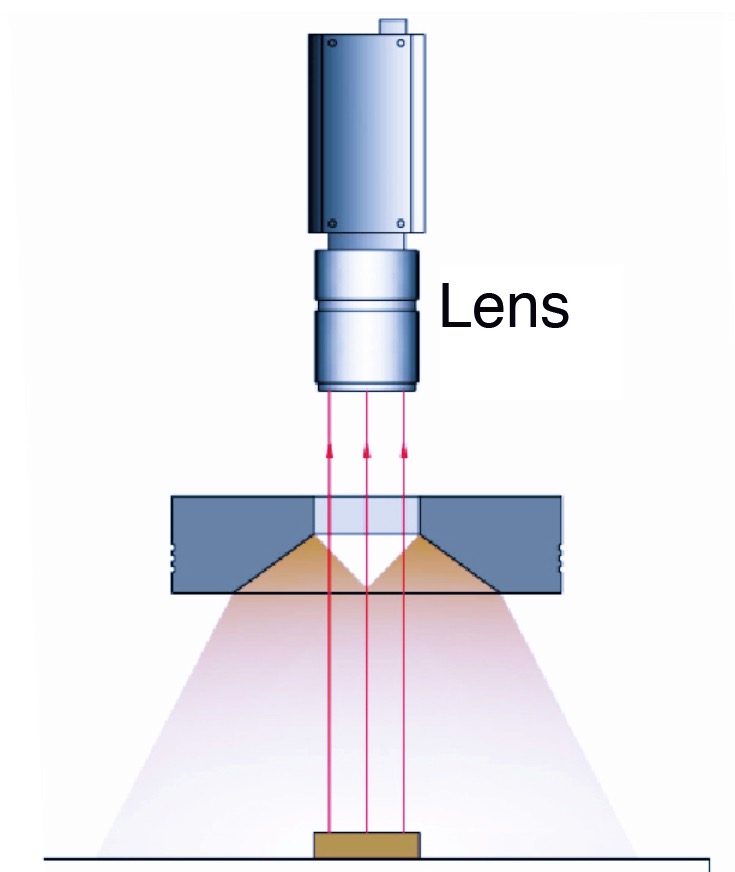

● LED beads are evenly distributed around. The light penetrate the LGP and become uniform and diffusible. ● This series are widely used in the occasion that reflective light or light spots are not welcome. |
|||||
|
|||||
|---|---|---|---|---|---|
|
● High angle uniform illumination. ● Inspection of cigarette box printing, diode pins flatness, characters on the IC chip, welding spots, etc.. |
|||||
Specifications |
||
|---|---|---|
| Light Area | Length：φ31.92-180 mm | |
| Supply Voltage | 24 V | |
| Power Cons. |
Red 620-630nm：0.48-21.0 W Blue 465-475nm：0.72-31.0 W White：0.72-31.0 W |
|
| Outer diam. | 48-196 mm | |
| Inner diam. | 10-146 mm | |
| High | 18.5-25.5 mm | |
| Connector | SMR-03V-B | |
| Polarity | 1: (+), 2: NC, 3: (-) | |
| Cable Length | 500 mm | |
| Optional Accessory |
Diffusion plate, Polarizing plate. DC extension cable:：1m / 2m / 3m |
|
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
|
|---|
