LR Low Angle Ring Illumination
1、Lights create dark field of view, suitable for edge detection and scratches on glossy surface.
2、High brightness LEDs are mounted on a flexible circuit board in a steep angle.
3、Breakthrough wave-soldering technology to improve production quality and efficiency.
Inquire now
Shop now
Product Description
Documents & Downloads

Information

PD No. CP-0704
PD Line LR Series

Features

● Lights create dark field of view, suitable for edge detection and scratches on glossy surface.

● High brightness LEDs are mounted on a flexible circuit board in a steep angle.

● Breakthrough wave-soldering technology to improve production quality and efficiency.

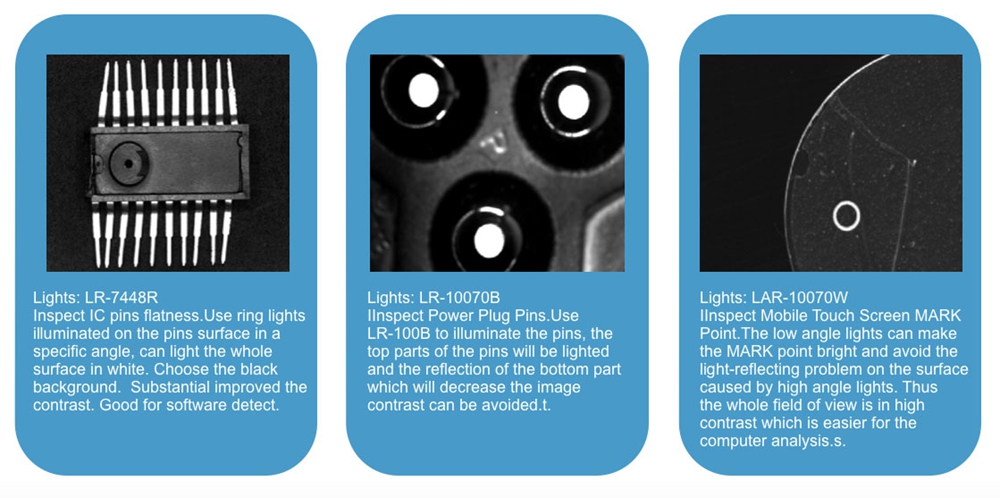

Applications

● Substrate and PCB positioning

● Chip component inspection

● LCD alignment

● Plastic container inspection

● Label inspection

● Mounter

● IC marking inspection, etc.


Specifications

Emission angle 0-40°
Supply Voltage 24 V
Power Cons.

Red 620-630nm:2.6 W

Blue 465-475nm:3.5 W

White:3.9 W

Outer diam. 60-213 mm (Customizable)
Inner diam. 22-175 mm (Customizable)
High 18-27 mm (Customizable)
Connector SMR-03V-B
Polarity 1: (+), 2: NC, 3: (-)
Cable Length 500 mm
Optional Accessory

Diffusion plate, Polarizing plate.

DC extension cable::1m / 2m / 3m

Operating environment (indoor)

Temperature: 0~40℃

Humidity:20% to 85% RH (with no condensation)

Life Time

White:30,000hrs

Red: 60,000hrs (Depends on the operating environment, not a gurantee)

Case Material Aluminum alloy, Resin

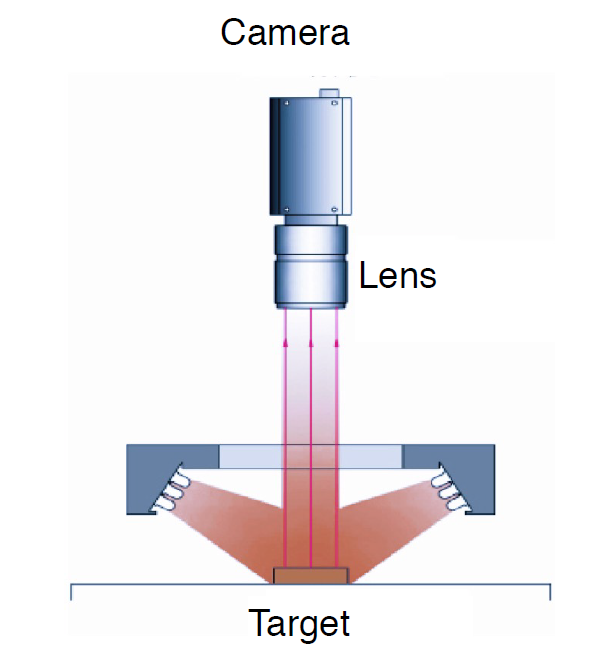

LR Series Low Angle Ring Illumination Overview
