VT-LEM0814CE-H1
VT-LEM industrial lens is a high-performance and cost-effective product designed and manufactured by machine vision based on multi-year market application feedback, professional optical lens assembly and coating process, advanced optical structure, and performance and quality similar to foreign products. Comparable, the entire series reaches 5 million optical points.
Inquire now
Shop now
Product Description

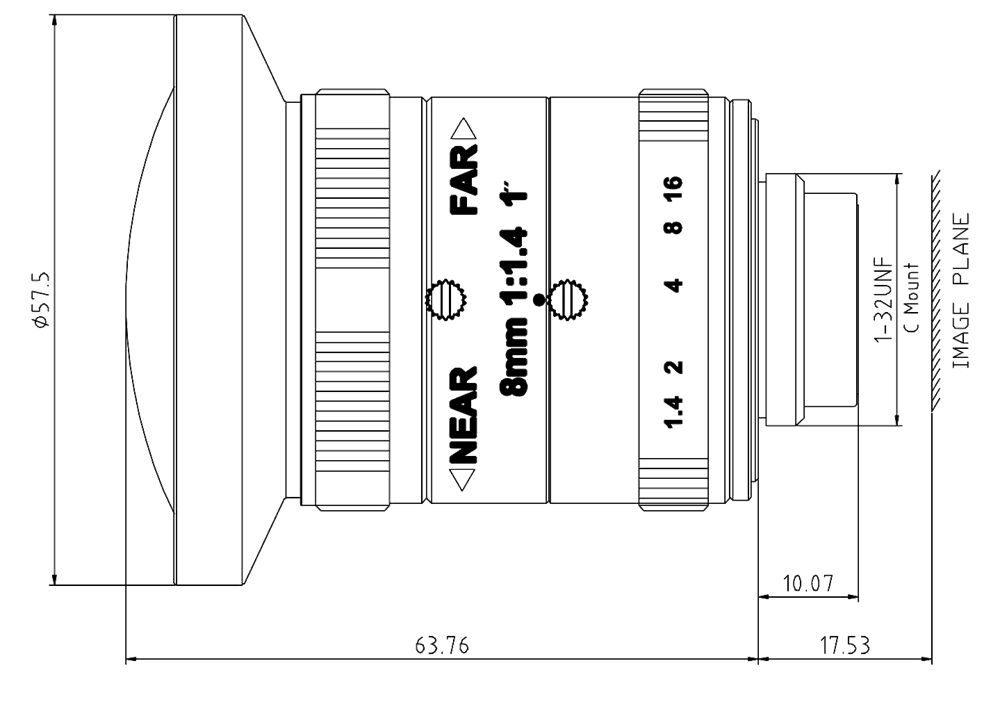

Technical Drawing
Documents & Downloads

General Information:

Model Number CP-0941
Series CE Series
Type Standard FA Lens


Optical Specifications

Resolution 9 Mega Pixels
Image Size 1" CCD/CMOS
Focal length 8.0 mm
Aperture, F/# F1.4~16
Flange Back 17.53mm
Back Focus 7.79mm
M.O.D 0.2 m
FOV(D×H×V)

D:88°

H:70.5°

V:53°

TV Distortion <1.5%
TTL 81.29 mm
Relative Illumination NA
Focus Range NA
Iris Manual
Focus Manual
Max. Incident Angle NA
Coating Wavelength 400-1100 nm


Mechanical Parameters:

Mount C-mount
Filter Size M39× 0.5
Built-in ir-cut NA
Front/Rear Effective Dia. NA
Dimension Φ57.5x63.7mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight NA

Standard FA industrial lens
