LEO 640H-200GM

Discontinued, please click to see upgraded models


Inquire now
Shop now
Product Description

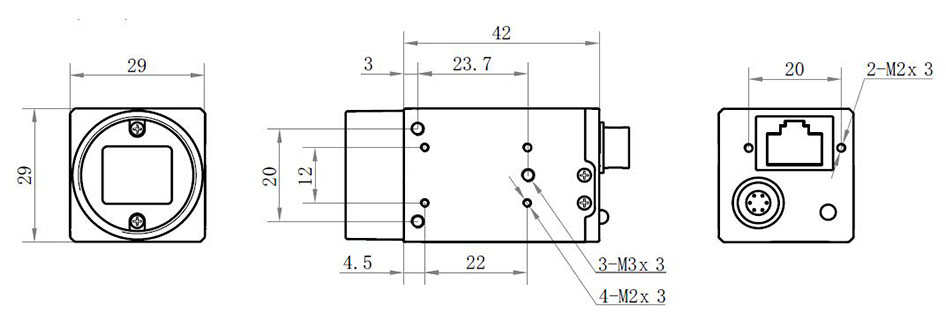

Technical Drawing
Documents & Downloads

Information

PD No. CP-0704
PD Line LEO Series

Sensor

Sensor Vendor Sharp
Sensor RJ33
Shutter Global Shutter
Sensor Size 1/3"
Sensor Type CCD
Resolution 640 px x 480 px
Pixel size 7.4 μm x 7.4 μm
Frame Rate 200 fps
Mono/Color Color

EMVA Data

Dynamic range 52.0 dB
Signal-to-Noise Ratio (typical) 37.0 dB

Camera Data

Interface GigE
Pixel Bit Depth 8 / 10 / 12 bits
Synchronization

● Soft Trigger

● Hardware Trigger

● Free Run

I/O 1 input(opto-isolated),
1 output(opto-isolated) ,
1 bi-directional custom non-isolated
Power Supply PoE or 12 VDC

Design

Design Compact industrial design
Dimension (L x W x H) 42 mm x 29 mm x 29 mm
Lens Mount  C-mount (CS-Mount can be customized)
Working Temperature  0 - 50°C(Operating),-30 - 70°C(Storage)
Weight(Typical)

65g


Software Environment

Driver , SDK

LEO Series Camera Secondary Development Kit(iDatum)or Third-party Software meeting with GigE Vision Protocol

Operating System Windows,Linux,Arm
Conformity GigE Vision and GenICam

LEO Series Industrial Cameras SDK.   iDatum

LEO Series Industrial Cameras User Manual

Product Specification
